Georg Fischer | Conductivity/TDS Sensor | 2818-2823

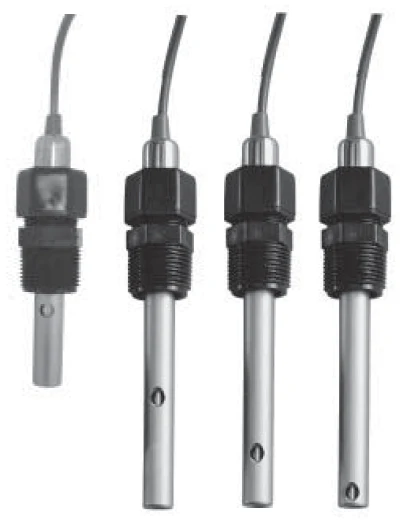

The Georg Fischer Signet 2818-2823 Conductivity/Resistivity Electrodes
are designed to provide versatile installation and accurate sensing across a very broad dynamic range.
These electrodes are built with a controlled surface finish to ensure accuracy and repeatability. The standard electrode is constructed 316 SS or Titanium,
but there are other materials available for maximum chemical compatibility.
Specifications
Cell Constant Accuracy : ±2% of reading
Range : Upto 200,000 μS / 100,000 ppm
Process connection : ¾ in. NPT
Wetted Materials : EPR (EPDM), Carbon fiber reinforced PTFE, 316L stainless steel
Mounting : In-Line
Operating Temperature, Pressure Range: -10 °C to 65 °C (14 °F to 149 °F): 0 to 6.9 bar (0 to 100 psi)
Manufacturer : Georg Fischer
Country of Origin : United States of America
Range
- 1 to 1000 μS
- 10 to 10000 μS
- 100 to 200000 μS
- 0.5 to 500 ppm
- 5 to 5000 ppm
- 50 to 100000 ppm
